Please also watch our product
movie on the homepage!
The

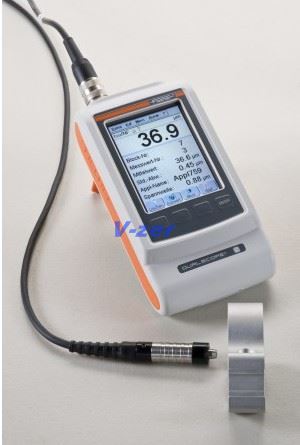

DUALSCOPE?/SUP> FMP100 is a new unique instrument type for coating measurement
according to the magnetic induction method and to the eddy current method with
automatic detection of the substrate material. With the magnetic induction
method you can measure e.g. zinc, chromium, copper, tin or paint, varnish,
plastics, enamel on iron or steel. With the eddy current method you can measure
e.g. paint, varnish or plastics on aluminum, brass or zinc as well as anodized
coatings on aluminum.
On the one hand, the instrument has the practical small size of a handheld
instrument. On the other hand, it has all the advantages of the software of
PC-based lab instruments.
There are many fields of applications, e.g. on the production floor, for the
income inspection, or in the lab. The high precision of the probes ensures a
significantly increased measurement range. In addition there are improved,
robust probe connectors.
Here are some of the instruments?new features:
Elegant,
ergonomical design
Bright color
LC display
Touchscreen
or soft keys
Intelligent
probe technology
Drag-and-drop
printform configuration
Printforms
in PDF format
USB
communication and printer port
Automatic
data backup
Password protection
The instrument is
very user-friendly. The operation is straightforward and easy to use. The
buttons are self-explanatory. Furthermore a personal computer, printer or
keyboard can be connected via the USB port. A new feature is the data export in
PDF format.

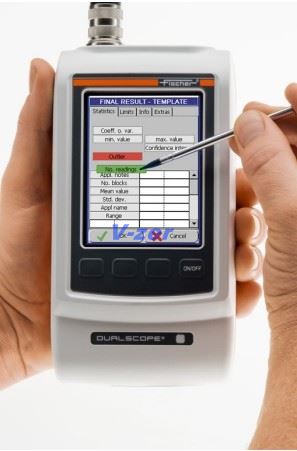

By using the drag-and- drop feature, the user will be able to create interfaces
himself and application-specific printform templates.
Various graphical display formats provide a clear overview. Sum frequency
diagram and histogram provide easily seen indications of potential systematic
influences in measurement series. It is understood that there is targeted
comparisons of measurement blocks.
Production processes can then quickly be evaluated, and differences between
various shipments can be pinpointed quickly during the incoming inspection.
DUALSCOPE® FMP100是一款全新設計的用于測量鍍層厚度的獨一無二的儀器。它依據磁感應法和電渦流法，配以底材自動識別系統，進行涂鍍層厚度測量。使用磁感應方法，你可以測量鋼鐵上鍍的鋅、鉻、銅、錫或油漆、清漆、涂料、釉等涂層厚度。使用電渦流法，您能測量鋁上油漆、清漆、涂料、釉等涂層厚度，或是鋁上的黃銅或鋅、陽極氧化鋁膜層的厚度。.
東莞威哲精密儀器有限公司是一家專業研究生產精密測量儀器的高新科技公司!主要產品有:圓度儀|圓柱度儀|輪廓度儀|粗糙度儀|一鍵測量儀|光學測量方案|測量自動化系統|測量投影儀|全自動影像測量儀|二次元|三次元測量儀|恒溫恒濕箱|冷熱沖擊試驗箱|烤箱|服務器SAG平面度測量儀|絲錐尺寸自動測量儀等
我司維修和保養德國FISCHER公司所有產品,銷售德國FISCHER所有系列測量探頭,標準片.聯系電話:13712365695何先生
FMP100DUALSCOPE FMP100的詳細資料：
特點：
? 明亮的彩色LC顯示器
? 觸摸屏
? 革命性的探頭技術
? 拖曳打印格式配置
? USB端口和打印機端口
? PDF格式的打印模板
? 密碼保護
? 自動數據備份
技術數據和特征：
|
儀器平臺 |
應用軟基基于MS Windows CE |
|
顯示器 |
明亮圖形顯示器（彩色、觸摸屏） |
|
鍵盤/操作 |
4個薄膜開關，軟鍵盤，最多12個軟鍵 |
|
探頭連接器 |
10針插座 |
|
通訊界面 |
USB4（型號：Mini-AB）連接打印機或PC |
|
內存 |
256MB，用于應用程式和測量數據 |
|
統計 |
平均值、標準偏差、Cp、Cpk，全部數據統計、直方圖、總頻率 |
|
安全機制 |
應用程式和系統密碼保護，自動儲存數據 |
|
數據輸出 |
PDF格式的測量數據打印，測量數據以ASCII格式傳輸?shù)?/span>PC |
|
語言 |
中文、英語、德語、法語、意大利語、西班牙語、日文 |
|
電源 |
電池/可充電電池，或者AC適配器110/230 VAC3 |
|
尺寸/重量 |
89×40×170（W×D×H,mm），大約395g（不包含探頭） |
|
操作/運輸 |
背帶，儀器支持架（折疊式設計） |
|
操作溫度 |
10～40℃ |
遵循標準和慣例：
? 非磁性涂鍍層在磁性金屬基材上（用遵循DIN EN ISO 2178，ASTM B499的磁感應方法），例如：鋅、鉻、銅、錫或者油漆、清漆、塑料、瓷釉在鐵或鋼上
? 不導電的涂層在非磁性金屬基材上（用遵循DIN EN ISO 2360，ASTM B244的電渦流方法），例如：油漆、清漆或者塑料在鋁、黃銅或者鋅上，包括鋁氧化膜
? ASTM D7091-05標準慣例，非破壞性測量非磁性涂層的干膜厚度應用于鐵金屬和非磁性金屬，不導電涂層應用于非鐵金屬
